Medical Dry Thermal Film
The film should be stored in its original packaging in a dry, cool, and dust-free environment, away from direct light and exposure to acidic or alkaline gases.
Key words:
Dry laser film | Ultrasonic self-printing terminal
Category:
Phone:
Medical Dry Thermal Film
Storage:
The film should be stored in its entire package in a dry, cool, and dust-free indoor environment, avoiding direct exposure to bright light and acidic or alkaline gases. Specific requirements are as follows:
1. Temperature and Humidity: Temperature: 10°C ~ 23°C, Relative Humidity: 30% ~ 65%, keep away from heat sources.
2. Gases: The storage room should be free of hydrogen sulfide, ammonia, sulfur dioxide, and formaldehyde, or other acidic or alkaline gases.
3. Stacking Method: Should be stored upright to avoid adverse effects from pressure.
Film Model Series:
TK-410 / TK-680 / TK-808 / TK-880
Applicable Printers:
1. TYKE: TK-3500A, TK-3500F, TK-900
2. AGFA Printers, FUJI Printers

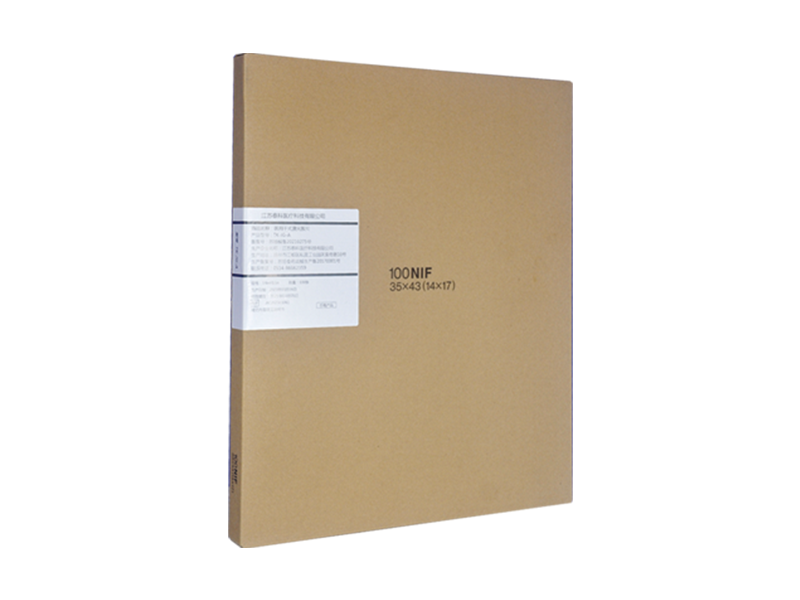

Packaging Specifications:
| Size | Sheets per Box | Boxes per Case | |
| in | cm | ||
| 14×17 | 35×43 | 100 | 5 |
| 11×14/10×14 | 28×36/26×36 | 100 | 5 |
| 10×12 | 25×30 | 100 | 5 |
| 8×10 | 20×25 | 100 | 5 |
Features and Usage:
This product uses a blue polyester sheet as the support base. On both sides, it is coated respectively with an imaging layer and a protective layer, not containing light-sensitive silver halide components. This film is only suitable for thermal printing and output of medical images stored digitally after computer processing. It can accurately reproduce various medical images processed by computer, eliminating the need for the traditional silver halide film development process, thereby completely removing the environmental pollution caused by processing waste chemicals. This film features low fog ratio, high clarity, high maximum density, bright tone, and convenient usage, making it directly compatible with medical thermal printers available in the market.
Safe Under Natural Light:
Not sensitive to visible light and can be operated normally under typical lighting conditions.
Usage:
This product is a direct printing consumable and can be used directly in Tyco medical image printers. It can also be used in printers of other brands.
Usage Environment:
The optimal usage environment is temperature of 18°C - 24°C and relative humidity of 50% - 65%.
